Plurio

  • Plurio
  • Plurio
  • Plurio
  • Plurio

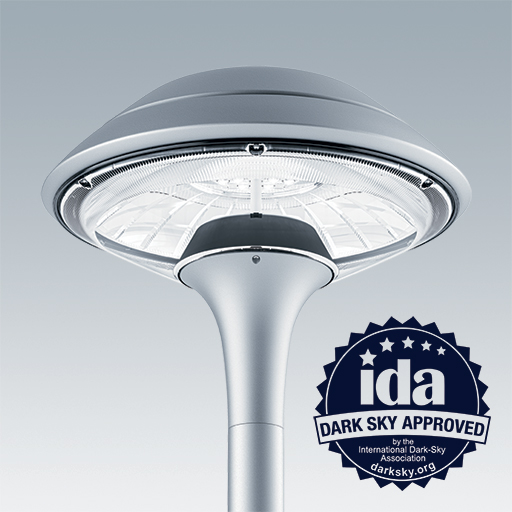

Allsidig mastetopparmatur, Dark-Sky-kompatibel Nighttune-teknologi

  • IDA Dark Sky Approved
  • *IDA-armaturens godkjenningsstempel omfatter kun <= 3000 K og klar avskjerming. Armaturer skal monteres i henhold til fotometrisk måling.
  • Stor allsidighet med fire toppskjermdesign: original, rund, flat og skive
  • Direkte eller indirekte belysning
  • Nighttune-teknologi
  • Zd4i-sertifisert på forespørsel

Utførelse

Base and canopy: die-cast aluminium
Via the configurator: texturized anthracite, black (R9005) and light grey and 48 other RAL possibilities
Ø60 mm: EN AC-44300, standard corrosion class C5 according to ISO 9223: 2012. Ø76 mm: EA AC47100 + cat coating, standard corrosion class C5
Diffuser: clear UV stabilized polycarbonate with anti glare prisms on the outer part
Internal reflector and cable pipe: white highly reflective ABS (plastic)
Mirrors (asymmetrical version): high reflective anodised aluminium
Screw fixings: stainless steel

Installasjon og montering

Montering på mastetopp. Anbefalt monteringshøyde: 3–4 m
Festeanordning: 60 mm (lengde: 75 mm) eller 76 mm (lengde 100 mm)
Matchende master og braketter bidrar for å oppnå en helhetlig design
Tilgang til LED og forkobling via tre skruer under skjerm
Ferdigkablede varianter tilgjengelig via konfiguratoren
Levert i én eske, klar til installasjon, komplett med fabrikkmontert integrert utstyr.

myProduct: If not listed below, click here for additional product configurations of Plurio

New Product
LumExpress Product
eControl Product

▼ Plurio Indirect, symmetrisk optikk, original

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLI O 24L25-740 R/S BS 3550 T60 CL2 ANT192416LED9.5096668675
PLI O 24L35-722-40 R/S T60 CL2 ANT262973LED9.5096668689
PLI O 24L35-740 R/S BS 3550 T60 CL2 ANT263261LED9.5096668677
PLI O 24L50-722-40 R/S T60 CL2 ANT363932LED9.5096668687
PLI O 24L50-740 R/S BS 3550 T60 CL2 ANT364456LED9.5096668679
PLI O 24L60-740 R/S BS 3550 T60 CL2 ANT445206LED9.5096668681
PLI O 24L70-722-40 R/S T60 CL2 ANT515386LED9.5096668685
PLI O 24L70-740 R/S BS 3550 T60 CL2 ANT515907LED9.5096668683

▼ Plurio Indirect, symmetrisk optikk, round

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLI R 24L25-740 R/S BS 3550 T60 CL2 ANT192416LED9.5096668691
PLI R 24L35-722-40 R/S T60 CL2 ANT262973LED9.5096668705
PLI R 24L35-740 R/S BS 3550 T60 CL2 ANT263261LED9.5096668693
PLI R 24L50-722-40 R/S T60 CL2 ANT363932LED9.5096668703
PLI R 24L50-740 R/S BS 3550 T60 CL2 ANT364456LED9.5096668695
PLI R 24L60-740 R/S BS 3550 T60 CL2 ANT445206LED9.5096668697
PLI R 24L70-722-40 R/S T60 CL2 ANT515386LED9.5096668701
PLI R 24L70-740 R/S BS 3550 T60 CL2 ANT515907LED9.5096668699

▼ Plurio Indirect, symmetrisk optikk, flat

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLI F 24L25-740 R/S BS 3550 T60 CL2 ANT192416LED11.0096668611
PLI F 24L35-722 R/S BS 3550 T60 CL2 ->262494LED6.7092916460
PLI F 24L35-722-40 R/S T60 CL2 ANT262973LED11.0096668625
PLI F 24L35-740 R/S BS 3550 T60 CL2 ANT263261LED11.0096668613
PLI F 24L35-830 R/S BS 3550 T60 CL2 ->262782LED6.7092916445
PLI F 24L50-722-40 R/S T60 CL2 ANT363932LED11.0096668623
PLI F 24L50-740 R/S BS 3550 T60 CL2 ANT364456LED11.0096668615
PLI F 24L60-740 R/S BS 3550 T60 CL2 ANT445206LED11.0096668617
PLI F 24L70-722-40 R/S T60 CL2 ANT515386LED11.0096668621
PLI F 24L70-740 R/S BS 3550 T60 CL2 ANT515907LED11.0096668619

▼ Plurio Indirect, symmetrisk optikk, disc

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLI D 24L25-740 R/S BS 3550 T60 CL2 ANT192416LED11.0096668627
PLI D 24L35-722 R/S BS 3550 T60 CL2 ->262494LED6.7092916450
PLI D 24L35-722 R/S BS 3550 T60 CL2 ->262494LED6.7092916456
PLI D 24L35-722-40 R/S T60 CL2 ANT262973LED11.0096668637
PLI D 24L35-722-40 R/S T60 CL2 WS4 GY262973LED6.7092916451
PLI D 24L35-740 R/S BS 3550 T60 CL2 ANT263261LED11.0096668629
PLI D 24L35-830 R/S BS 3550 T60 CL2 ->262782LED6.7092916455
PLI D 24L35-830 R/S BS 3550 T60 CL2 ->262782LED6.7092916449
PLI D 24L50-722 R/S BS 3550 T60 CL2 ->363407LED6.7092916459
PLI D 24L50-722-40 R/S T60 CL2 ANT363932LED11.0096668639
PLI D 24L50-740 R/S BS 3550 T60 CL2 ANT364456LED11.0096668631
PLI D 24L50-830 R/S BS 3550 T60 CL2 ->363801LED6.7092916458
PLI D 24L60-740 R/S BS 3550 T60 CL2 ANT445206LED11.0096668633
PLI D 24L70-722-40 R/S T60 CL2 ANT515386LED11.0096668641
PLI D 24L70-740 R/S BS 3550 T60 CL2 ANT515907LED11.0096668635

▼ Plurio Indirect, gateoptikk, flat

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLI F 24L35-830 EWC-B BS 3550 T60 CL2 ->262724LED6.7092916448

▼ Plurio Indirect, gateoptikk, disc

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLI D 24L35-830 EWC-B BS 3550 T60 CL2 ->262724LED6.7092916453
PLI D 24L35-830 EWC-B BS 3550 T60 CL2 ->262724LED6.7092916454

▼ Plurio LED, symmetrisk optikk, originalt armaturhus

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
PLD O 18L35 R/S BPSW CL2 N4M D60 L7402027273502307LED7.8096259972

▼ Plurio Direct, symmetrisk optikk, original

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLD O 18L105-740 R/S BS 3550 T60 CL2 GY607034LED9.5096272430
PLD O 18L35-740 R/S BS 3550 T60 CL2 GY202727LED9.5096260711
PLD O 18L70-740 R/S BS 3550 T60 CL2 GY395001LED9.5096260678

▼ Plurio LED, symmetrisk optikk, rundt armaturhus

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
PLD R 18L35 R/S BPSW CL2 N4M D60 L740202727LED7.8096260861
PLD R 18L50 R/S BPSW CL2 N4M D60 L7402837473502308LED7.8096260864
PLD R 18L70 R/S BPSW CL2 N4M D60 L7403950013502309LED7.8096260706

▼ Plurio Direct, symmetrisk optikk, round

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLD R 18L105-740 R/S BS 3550 T60 CL2 GY607034LED9.5096272444
PLD R 18L35-740 R/S BS 3550 T60 CL2 GY202727LED9.5096260718
PLD R 18L50-740 R/S BS 3550 T60 CL2 GY283747LED9.5096260732
PLD R 18L70-740 R/S BS 3550 T60 CL2 GY395001LED9.5096260700

▼ Plurio Direct, symmetrisk optikk, flat

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLD F 18L105-740 R/S BS 3550 T60 CL2 ->607034LED7.7092927535
PLD F 18L105-740 R/S BS 3550 T60 CL2 GY607034LED11.0096668649
PLD F 18L35-740 R/S BS 3550 T60 CL2 ->202727LED7.7092926121
PLD F 18L35-740 R/S BS 3550 T60 CL2 GY202727LED11.0096668643
PLD F 18L50-740 R/S BS 3550 T60 CL2 ->283747LED7.7092927537
PLD F 18L50-740 R/S BS 3550 T60 CL2 GY283747LED11.0096668645
PLD F 18L70-740 R/S BS 3550 T60 CL2 ->395001LED7.7092927536
PLD F 18L70-740 R/S BS 3550 T60 CL2 GY395001LED11.0096668647

▼ Plurio Direct, symmetrisk optikk, disc

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
PLD D 18L105-740 R/S BS 3550 T60 CL2 ->607034LED7.7092927538
PLD D 18L105-740 R/S BS 3550 T60 CL2 GY607034LED11.0096668657
PLD D 18L35-740 R/S BS 3550 T60 CL2 ->202727LED6.7092917974
PLD D 18L35-740 R/S BS 3550 T60 CL2 GY202727LED11.0096668651
PLD D 18L50-740 R/S BS 3550 T60 CL2 ->283747LED7.7092927541
PLD D 18L50-740 R/S BS 3550 T60 CL2 GY283747LED11.0096668653
PLD D 18L70-740 R/S BS 3550 T60 CL2 ->395001LED7.7092918409
PLD D 18L70-740 R/S BS 3550 T60 CL2 GY395001LED11.0096668655

▼ Plurio LED-gateoptikk, originalt armaturhus

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
PLD O 18L70 WST BPSW CL2 N4M D60 L7403946823502302LED7.8096260705

▼ Plurio LED-gateoptikk, rundt armaturhus

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
PLD R 18L70 WST BPSW CL2 N4M D60 L7403946823502305LED7.8096260707
PLD R 18L35 WST BPSW CL2 N4M D60 L7402025533502303LED7.8096260862
PLD R 18L50 WST BPSW CL2 N4M D60 L7402835083502304LED7.8096260863
